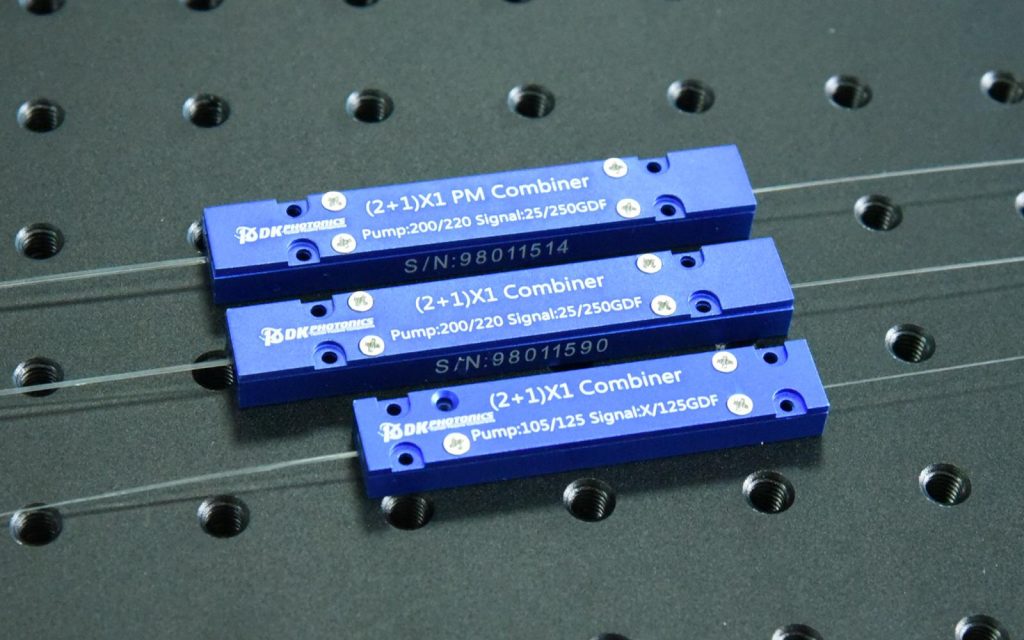

1.5um (2+1) x 1 Pump and PM Signal Combiner

DK Photonics’ (2+1) ×1 Multimode Pump and PM Signal Combiner is designed for high power applications. It features exceptional optical characteristics. These devices can combine 2 pump lasers and 1 signal channel into one fiber and create a high-power pump laser source, delivering the combined power for applications in industrial, military, medical and telecommunications markets. It has a heat sink package and a hole for temperature monitoring.

Features

  • High Power Transfer Efficiency
  • Low signal insertion loss
  • High PER
  • High power package
  • Freely selectable signal and pump wavelength
  • Custom Configurations Available

Applications

  • Pumping of fiber laser and amplifier
  • Pumping of multi-core and large mode area fibers (LMA)
  • Pump combiner for Nd & Yb & Er & Ho&Tm-fiber
  • Industrial-Biomedical-Telecommunication
  • Metrology-Life Science-Imaging-Quantum optics
  • Gravitational wave detection-Atom cooling and trapping
DK Photonics’ (2+1) ×1 Multimode Pump and PM Signal Combiner is designed for high power applications. It features exceptional optical characteristics. These devices can combine 2 pump lasers and 1 signal channel into one fiber and create a high-power pump laser source, delivering the combined power for applications in industrial, military, medical and telecommunications markets. It has a heat sink package and a hole for temperature monitoring.
DK Photonics’ Multimode Pump and PM Signal Combiners offer efficient power transfer for high power applications like direct diode materials processing and pump cascading with a maximum conservation of brightness. The Multimode Combiners can be designed to meet a wide range of power handling configurations, number of input fibers and adaptation to different fiber types.
We can produce Pump and PM Signal Combiner including (2+1) x1, (6+1) x1, (18+1) x1and so on. Pump fiber, signal fiber and output fiber type and the configuration can be customized. If you do not see a Pump and Signal Combiner from the standard configurations that meet your needs, we welcome the opportunity to review your desired specification and quote a custom Pump and Signal Combiner. Requests for custom pump fiber, signal fiber, output fiber type and the configuration, the handling power or other specific needs will be readily addressed.DK Photonics can respond to custom requirements with short lead times.

Performance Specifications (Typical Configuration)

PARAMETERS
VALUES
Signal Operating Wavelengths
1530-1575nm
Pump Operating Wavelengths
780-1000nm
Number of Multimode Inputs
2
Number of Signal Ports
1
Number of Output Ports
1
Pump Input Fiber
105/125µm, NA0.22
Signal Input Fiber
PM-GDF-1550 (PM 9/130µm, NA0.12/0.46)
Output Fiber
PM-GDF-1550 (PM 9/130µm, NA0.12/0.46)
Min. Pump Efficiency
90%
Max. Signal Insertion Loss
0.50dB
Min. Polarization Extinction Ratio
18 dB
Power per Multimode Input
50W
Optical Return Loss – Pumps
>35dB
Optical Isolation
>20dB
Max. M²
1.3
Operating Temperature
0~75℃
Storage Temperature
-40~85℃
  1. Other configuration and higher power handling can be customized.
  2. Other pump fibers 106.5/125µm, NA0.22, or 135/155µm, NA0.22 can be customized.
  3. All combiners default with bare fiber, 0.8m length of pigtail, please contacts us for special request.

General Configuration for (2+1) x1 Combiner-1.5µm fiber laser:

TYPE
SIGNAL WAVELENGTH(NM)
PUMP FIBER
INPUT SIGNAL FIBER
OUTPUT FIBER
MAX. SIGNAL IL
MIN. PER(DB)
MIN. PUMP EFFI.
MAX. POWER HANDLING
(2+1) ×1
1530-1575
105/125 0.22
PM1550
PM-GDF-1550
0.5dB
18dB
90%
50W/leg
(2+1) ×1
1530-1575
105/125 0.22
PM-GDF-1550
PM-GDF-1550
0.5dB
18dB
90%
50W/leg
(2+1) ×1
1530-1575
105/125 0.22
PM12/130 DC
PM12/130 DC
0.5dB
18dB
90%
50W/leg
(2+1) ×1
1530-1575
105/125 0.22
 PM1550-XP  OR PM-GDF-1550 OR PM12/130 DC
PM25/300 DC
0.7dB
16dB
95%
100W/leg
  1. Other configuration and higher power handling can be customized.
  2. Other pump fibers 106.5/125µm, NA0.22, or 135/155µm, NA0.22 can be customized.
  3. All combiners default with bare fiber, 0.8m length of pigtail, please contacts us for special request.
  4. (1+1) x1 combiner also applies to the above specifications.

Package Information

Package Type
P1
P2
P3
P4
Dimensions (mm)
Ф4.0×60
65x12x7
80x12x8
100x15x10
  1. Due to ongoing design improvements, the package size is subject to change. According to the different configuration, power handling, and fiber core diameter, we will choose the appropriate package size. Please contact DK Photonics for confirmation.
  2. High power device package must be mounted onto heat sink (active cooling is suggested) with thermal paste.
Download Drawing in PDF:Pump and Signal Combiner

Order information

P/N: PMPSC-A-B-C-D-E-F-G-H

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better.

A B C D E F G H
Port Pump Type Signal Wavelength Power per Multimode Input Pump Fiber Signal Fiber Output Fiber Fiber length
11: (1+1)X1

21: (2+1)X1



 F:Forward pump

B:Backward pump

 15:1550nm 10:10W

25:25W

50:50W

XX: Other

 XXX(fiber name) XXX(fiber name) XXX(fiber name) 08:0.8m(default)

10:1.0m

20:2.0m

Part Number Example: PMPSC-21-F-15-20-105/125/22-P12/130/20D-P12/130/20D-08

Description: (2 + 1) x 1 Pump and PM Signal Combiner, 1550nm signal wavelength, Forward pump, 20W per pump power, 105/125µm,0.22NA input pump fiber, PM12/130DC input signal fiber, PM12/130DC output fiber, 0.8m fiber length.

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
