Fiber Protection sleeve

Fiber Protection sleeve is used for protecting and supporting the fusion splice point. Fiber Protection sleeve consists of a steel reinforcement, an inner fiber tube and an outer shrink tube, and two transparent outer tubes are used to view the color of the fiber itself. These sleeves are designed to fit smaller width splice trays while still accommodating 250um bare fiber and 900um jacket tube fibers.

Features

  • Protection Sleeves Lenght:15mm；20mm；25mm；30mm；35mm；40mm；45mm； 50mm； 55mm； 60mm， Steel needle Diameter: 0.5mm； 1.0mm；1.2mm (Standard Single Fiber)

Applications

  • Protecting and supporting the fusion splice point

Features

  1. Consist of cross-linked polyolefin, hot fusion tubing and stainless reinforced steel rod.
  2. Keep optical transmission performance of optical fiber
  3. Provide safe protection to optical fiber splicing
  4. Easily use and avoid any damage to the optical fiber during installation
  5. Sealing structure provides good performance to the Splicing in the environment with temperature and humidity
  6. Protection Sleeves Lenght:15mm, 20mm, 25mm, 30mm, 35mm, 40mm, 45mm , 50mm , 55mm , 60mm
  7. Steel needle Diameter: 0.5mm, 1.0mm,1.2mm (Standard Single Fiber)
  8. Custom lengths available
  9. Working temperature: -55 – 100℃
  10. Shrinkage temperature range: 90-110 ℃
Packing: 100pcs/bag

Technical Data:

PROPERTY
TEST METHOD
TYPICAL DATA
Tensile strength(MPa)
ASTM D 2671
≥18 MPa
Ultimate elongation(%)
ASTM D 2671
700%
Density(g/cm²)
ISO R 1183 D
0.94g/cm²
Dielectric strength(KV/mm)
IEC 243
20KV/mm
Dielectric constant
IEC 243
2.5 max.
Longitudinal change(%)
ASTM D2671
±5%.

Specifications

PART NO.
SPLICE PROTECTION SLEEVE
FUSION TUBE
STEEL ROD
PACKING (PC/BAG)
O.D(After Shrinking)
(±0.2mm)
Length (±1mm)
I.D
(±0.1mm)
Length (±1mm)
O.D
(±0.1mm)
Length
(±1mm)
FSP-60-1.2
2.6
61
1.4
60
1.2
55
100
FSP-45-1.2
2.6
45
1.4
45
1.2
40
100
FSP-40-1.2
2.6
40
1.4
45
1.2
35
100
FSP-25-1.2
2.6
25
1.4
25
1.2
20
100
FSP-60-1.0
2.4
61
1.4
60
1
57
100
FSP-45-1.0
2.4
45
1.4
45
1.0
41
100
FSP-40-1.0
2.4
40
1.4
40
1.0
35
100
FSP-30-1.0
2.4
30
1.4
30
1.0
25
100
FSP-25-1.0
2.4
25
1.4
25
1.0
21
100
FSP-40-0.5
1.3
40
0.35
40
0.5
40
100
FSP-25-0.5
1.3
25
0.35
25
0.5
25
100
FSP-20-0.5
1.3
20
0.35
20
0.5
20
100
FSP-18-0.5
1.3
18
0.35
18
0.5
18
100
FSP-15-0.5
1.3
15
0.35
15
0.5
15
100
Other lengths and sizes are available on request.

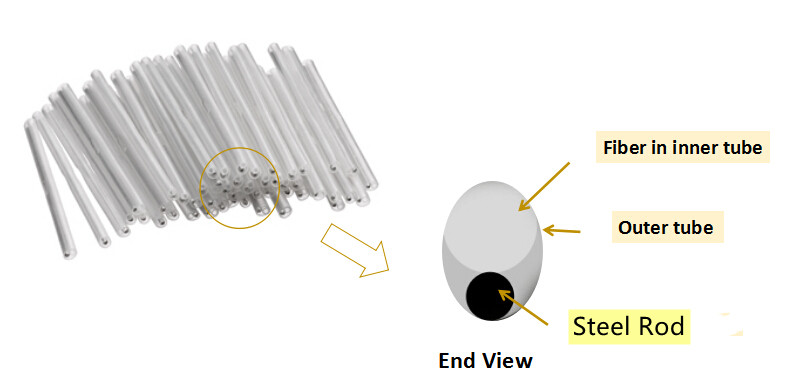

Structure

When you inquire, please provide our P/N number and quantity (package) directly.

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
